Power Snap S
Product Details
Brand: Dinkar PV Technologies
Supplier: Punjab Solar Care
| Technical Specifications | PowAR Snap*S |
| ARTICLE N* | 244133000 |
| MATERIAL | 65Mn acc.GB/T1222 |
| SURFACE TREATMENT | Combines an inorganic zinc-rich with basecoat with aluminum-rich organic topcoat |
| DIMENSIONS IN MM | 44*48*34 |
| WEIGHT IN G | 33,4 |
| TEMPERATURE RESISTANCE | Conforms to UL2703(2015) section 17 |
| HUMIDITY RESISTANCE | Conforms to UL 2703(2015 )section 18 |
| MECHANICAL RESISTANCE | Load+ 5400/-2400 Pa compliant with IEC 61215-10.16:2005 Conforms to UL2703 (2015)section21 |
| CORROSION RESISTANCE | No red rust after 720 hours salt spray acc.ISO9227:2012(NSS) |
| GROUNDING CONTINUITY | Compliant with IEC60439-1:2004 8.2.4.1 after 240 hours salt spray, acc. EN 60068-2-11:1999 after sulfur dioxide (SO2) acc. EN ISO6988:1995 Conforms to UL 2703 (2015) section 22.1a and 22.1b |
| LIGHTNING RESISTANCE | Compliant with IEC 60439-1:2004 8.2.4.1 after 20kA/8-20us current pulse |
| PV MODULE SPECIFICATIONS | Module with frame thickness A between 1,5 anc2,2mm, minimum lip length B of 16mm and minimum frame height C of 30mm (See technical drawing 1) |
| RAIL SPECIFICATIONS | Standard Strut rails 41*41 mm or 41*62 mm (See technical drawing 2) or steel rails with square punch (See technical drawing 3) or with specific punch (see technical drawing 4) |
BENEFITS
PERFORMANCE
- Conforms to UL STD2703(Ed.2015).
- Tested by accredited laboratories and qualified by major module manufacturers.
- High protection against corrosion and lightening.
- Grounding continuity of the string preserved when a module is dismounted for maintenance.
- Anti-theft designed.
QUICK

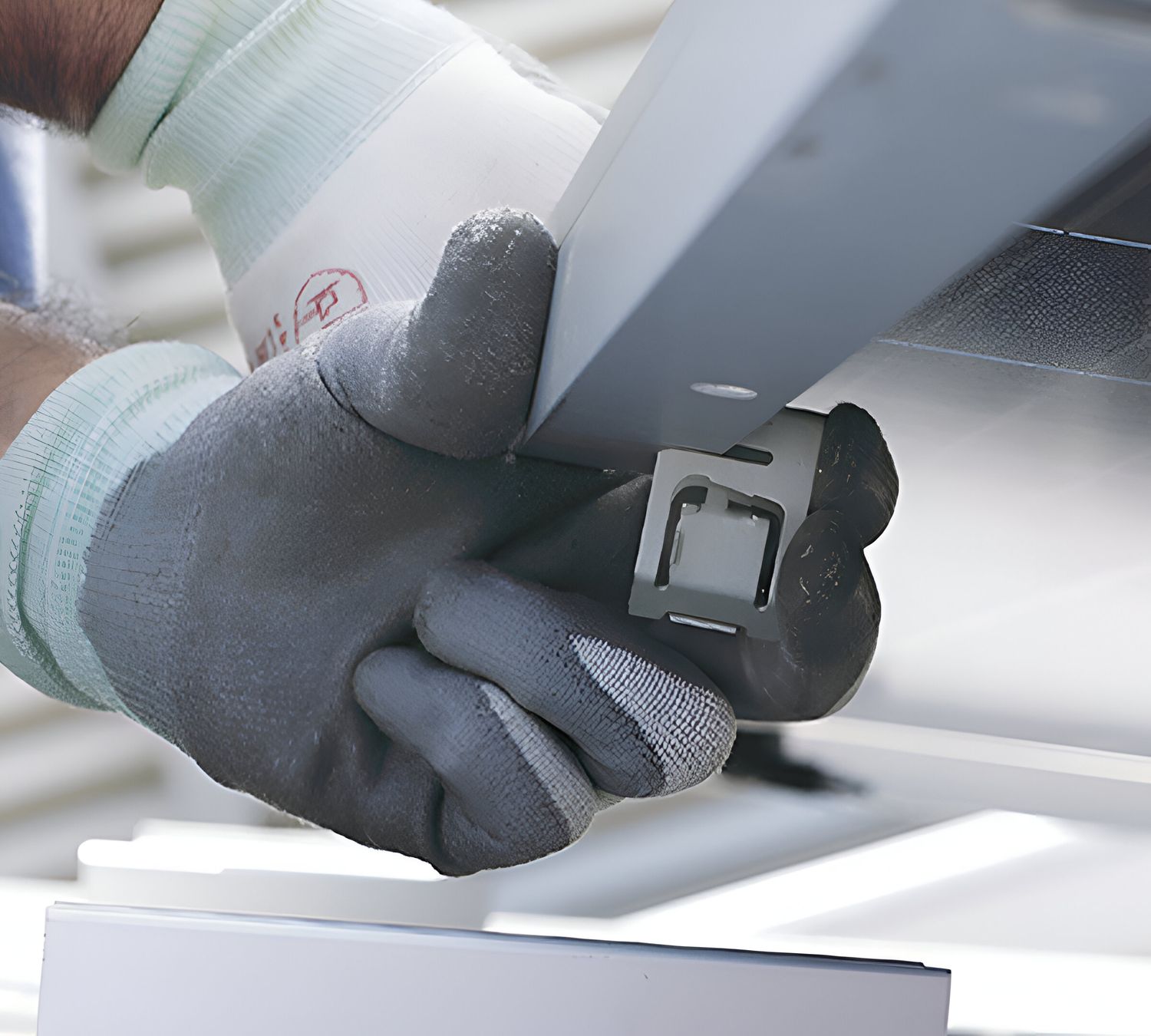

- Fastening and grounding in a single operation.
- 1 module installed within 30 seconds.
EASY TO USE
- Tool-free set up
- Minimal training required
- Intuitive: the "click" signals job is properly done.
- Friendly: no need for climbing on structure, panels can be inserted from underneath the array.
COST- SAVING
- Lower overall costs of the PV installation
- Lower land investment and structure savings thanks to minimized inter module gap: up to 3% more modules per available surface
- Lower maintenance cost: Screw-less ,on periodic torque control required
- Hot spot risk reduction for PV modules thanks to elastic mechanical clamping.
