DC SPD 1000V
SKU 80090
₹1,146.70

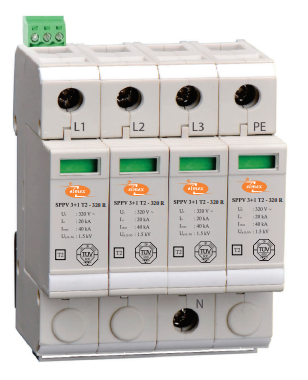

DC Surge Protection Device
Save this product for later
DC SPD 1000V
Product Details
Brand: Elmex
Supplier: Super Stockist Punjab Solar Care
SKU : SOL.SOL.107118875
Ucpv (V) : 1000v DC(Max. Continuous Operating)
Maximum Discharge Current : 40KA(Imax)
Nominal Discharge Current (kA) : 20KA(in)
Response Time (tA) : ≤25 ns (tA)
Indication : Green/Red
Operating Temperature Range : -40°C to + 70°C (Tu)
Weight : 450 gm
Mounting : 35mm Din Rail
Dimension : 10 × 10 × 4 cm
SPD : Type 2
Type of Product : Surge Protection Device
Voltage Protection Level : ≤4KV(Up)
Enclosure Material : Thermoplastic UL94-V0
Short Circuit Current : 1000A(Iscpv)
Protection : IP20
Voltage : 1000 V
